Enable remote connection to SQL Server 2005 Express

By default, SQL Server 2005 doesn’t allow remote connection so you have to enable it manually. If you try to connect to remote SQL Server without enable remote connection first, you’ll see one of these error messages.

Login failed for user ‘sa’. The user is not associated with a trusted SQL Server connection.
Login failed for 'sa'
An error has occurred while establishing a connection to the server. When connecting to SQL Server
2005, this failure may be caused by the fact that under the default settings SQL Server does not
allow remote connection.
SQL Server does not allow remote connection

To resolve these problems, you have 2 majors task. One is to enable both SQL Server and Windows authentication mode on SQL Server and the other is to allow remote connection and SQL Server Browser.

Step-by-step enable remote connection to SQL Server 2005 Express

  • Check that you have allowed both SQL Server and Windows Authentication mode (If you’re not use Windows Authentication mode). For instance, user “sa”.
    1. Login to SQL Server using SQL Server Management Studio Express on local SQL Server with Windows Authentication user. This will use Windows account to authenticate to SQL Server.
      Login using Windows authentication mode on local
    2. In Object Explorer, right click on the instance name and select Properties.
      Open SQL Server Properties
    3. On the left, select Security and change Server authentication to SQL Server and Windows Authentication mode. If the choice is already selected, that means you have already allowed SQL Server authentication.
      Change SQL Server authentication mode

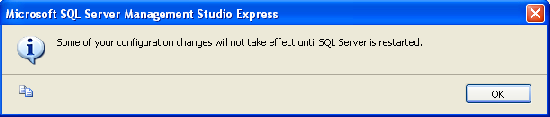

    4. There’ll be an information window shows that you need to restart SQL Server to takes effect of the changes.
      SQL Server need restart
    5. Right-click on the instance name again, select Restart to restart SQL Server service.
      Restart SQL Server Service
    6. Select Yes.
      Confirmation
    7. Wait for service stop and start.
      Restarting SQL Server Service
    8. That’s it. You have enabled both SQL Server and Windows authentication so now you can login to SQL Server with your current Windows account or your created account.
  • Check that you have enabled remote connection on SQL Server Surface Area Configuration

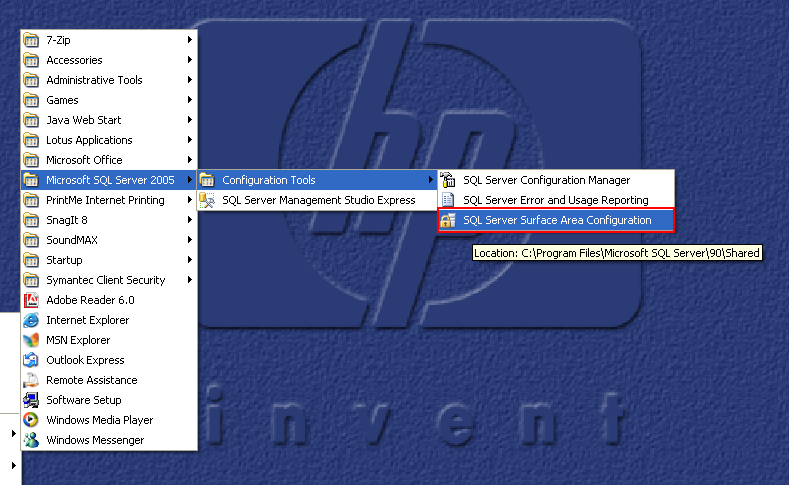

    1. Open SQL Server Surface Area Configuration.
      Open SQL Server Surface Area Configuration
    2. Select Surface Area Configuration for Services and Connections.
      Open Surface Area Configuration for Services and Connections
    3. On the left side, expand your SQL Server instance -> Database Engine -> Remote Connections. On the right side, select Local and remote connections -> using both TCP/IP and named pipes.
      Allow remote connections
    4. On the left side, select SQL Server Browser -> Service.
      On the right side, if the startup type is Disable, you need to change to Automatic and click Apply and click Start button to start the service. Then, click OK.
      Start SQL Server Browser
    5. You have finished configure. Now try to login to your SQL Server from remote computer using SQL Server authentication mode.
      Login to remote SQL Server
    6. Login to SQL Server succeeded.
      Login succeeded

Summary

This topic may be found on the Internet in many site or even Microsoft support but the purpose is to rearrange with easier to read and follow with graphic along with each step so it may help you reminder solution faster or even the person who have just start to use SQL Server 2005 Express Edition.

104 Responses to “Enable remote connection to SQL Server 2005 Express”

  1. linglom

    I’m not sure that you can do in that way because it may not safe. For instance, someone may try to reconfigure by execute script. Also, you need to restart SQL Server service which need right permission to do so.

  2. James

    You can set the login mode programatically – it’s just a registry key:

    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft SQL Server\MSSQL.1\MSSQLServer\LoginMode

    (MSSQL.1 relates to the instance you want to play with – it could be MSSQL.2, or .3 etc).

    It’s default value is 1. I set it to 2 in my installer to allow both windows auth and sql logins.

    You have to restart the service before the changes kick in of course.

  3. Nigel Stanhope

    Does anyone know of an sql script to do all this for you? ie. To enable both SQL Server and Windows authentication mode on SQL Server and to allow remote connection and SQL Server Browser. This way I can set it up automatically by using a batch file.

  4. sowens

    This is my error when i try to login
    TITLE: Connect to Server
    ——————————

    Cannot connect to EASTSERVER\OFFICESERVERS.

    ——————————
    ADDITIONAL INFORMATION:

    An error has occurred while establishing a connection to the server. When connecting to SQL Server 2005, this failure may be caused by the fact that under the default settings SQL Server does not allow remote connections. (provider: SQL Network Interfaces, error: 26 – Error Locating Server/Instance Specified) (Microsoft SQL Server, Error: -1)

    For help, click: http://go.microsoft.com/fwlink?ProdName=Microsoft+SQL+Server&EvtSrc=MSSQLServer&EvtID=-1&LinkId=20476

    ——————————
    BUTTONS:

    OK
    ——————————

  5. linglom

    Hi, sowens
    If you follow the link of this error message, you’ll find the possible cause and solution. But most of the time that I’ve seen this error is because of mistyped of the SQL Server name and instance name (SQL Server nameInstance name). Try to check the server name. If not that case, check that SQL Browser service is already started (on this post).

  6. Sanjeev

    I had installed the SQL server and it was accessed remotely using local network. Now it is possible to access from other machines using local network.

  7. Vlad

    So is there a way to configure the sql express to allow remote connections programatically ?
    Or at least from the install phase, but using ClickOnce and not unpacking the sqlexpr32.exe ?

  8. linglom

    See figure on step 5.

    Or you can stop/start from the command-line:
    To stop the MS SQL Server service, type “NET STOP MSSQLSERVER”
    To start the MS SQL Server service, type “NET START MSSQLSERVER”

  9. eherzel

    I installed native client only on a machine and try to connect via windows authentication. It seems that the application can find the server but has no access to the database:

    – unable to connect to database: Die von der Anmeldung angeforderte “HTWG”-Datenbank kann nicht geöffnet werden. Fehler bei der Anmeldung
    – connection string: Provider=SQLNCLI.1;Integrated Security=SSPI;Persist Security Info=True;Initial Catalog=HTWG;Data Source=db01

    If I change to SQL-authentification then it works fine!

    Any ideas?

  10. linglom

    To Eherzel,
    Have you check that you have create the correspond user which you used to authenticate on the SQL Server and give sufficient permission?

    You can test the connection to SQL Server using SQL Server Management Studio from the client by using the same credential (user account) as when you run the code and try to connect to the SQL Server.

  11. eherzel

    Server and client are in the same domain, users are logged in in this domain. Maybe the users need special rights? I tested too with Management Studio, I can connect to the server but have no right to access the database.

  12. HKouts

    I did a SQL 2005 instance installation but didn’t turn on the SQL Browser Service. It caused the application connection couldn’t resolve the named instance. After I turned on the SQL Browser Service. All are working fine. SOWENS’ link saved my day.

  13. Atul Rai

    i m trying to connect .net with sql2005 but i m unable.
    i hav created the object of sqlconnection as s and s.open() is showing error saying tat cant connect remotely with sql2005. i hav changed the setting still it is not working

  14. linglom

    To Atul Rai,
    Try to connect to SQL Server using Management Studio from remote PC to see if you can access it or not. Sometimes the problem doesn’t come from programming. For example, firewall is blocking the port.

    Simple way, try to telnet to the SQL Server with port 1433 (default SQL Server service port) remotely can also verify the connection to the SQL Server.

  15. Mouk Kim

    I am preparing a website and first of all, I wish to express thanks for your kind advice about this contest of remote connexction that is a long headache to me.

  16. MC

    Hi, just wanted to say these instructions are a great help. Only thing is I couldnt login as sa without first enabling logins, in SMSS, Security, Logins. Dont know if it is just my ignorance or if instructions above could benefit, but thanx so much for them.

  17. aman

    hi there

    i tried connecting using ur format
    but it is not taking it. it is still giving error:18452
    i have create user with name aman in server and tried to connect to the same user from client machine. but error: 18452:-)
    kindly help if possible…..

  18. aman

    hi Sir

    I am sorry. I was on mistake earlier. Actually i have made the mixed mode on client only,not on the server, thats why i was facing this error. Now my issue is resolved. Thanks a lot for your kind help.

    cheers…

  19. jay

    You made my day. I was struggling with remote connection issues. Then landed on your site via google. Thanks for your tips with screenshots. Great illustration. I’m able to connect and work within a few mins.
    Thanks so much for taking the effort in putting all this together.

  20. Saraboji Jayaraman

    THis is all ok when it is in normal mode. My question is how to enable remote connection in cluster environments.

    TITLE: Surface Area Configuration
    ——————————

    You cannot configure surface area of clustered services by connecting to a computer name. Connect to the virtual server to configure clustered services.

    ——————————
    BUTTONS:

    OK
    ——————————

    Tell me how to enable the same.

  21. Safuan

    I already follow your step to remote sql server……but still cannot to access…..the failure massage is default setting does not allow to remote connection

  22. linglom

    Hi, Pearl
    See comment 3 on this post.


    Hi, Saraboji Jayaraman
    It seems that you are trying to configure Surface Area Configuration on a node not the whole cluster. The solution is to connect to the cluster. On Surface Area Configuration, you will see an option “Change Computer”, select Remote Computer and type in the your cluster name (virtual server). Now you should be able to access it.


    Hi, Safuan
    Can you show the error message in detail? Eg. The error message and its ID.

  23. JanardhanKR

    I was struggling with remote connection setup, landed your site via google. Thanks for the wonderful flow with screenshots. Now, I could successfully connect and work with Remote connection without any issue. Great illustration.

  24. moul

    thank you for info. I thoght the mssqlserver2005 for trial version was made with an intent to cause users hard enough to buy a real version as a mareting skim.

  25. al

    Here is my problem. I have 2 PC on Intranet and both have SQL SERVER Express installed. One PC(server) has mdf file in C:\data folder. I can browse to this file using Management studio from BOTH PC’s, using server PC name. I created Windows .NET program to access data. Works fine on server. When I compile and run on second PC(client) it gives me error:User does not have permission to perform this action. Both PC logged with same user id and password. Here is my connection string:

    Data Source=MyServerPC\SQLEXPRESS;AttachDbFilename=c:\data\Teachers.mdf;Integrated Security=True;Connect Timeout=30;User Instance=True

    Can anyone help?

    Thanks

  26. linglom

    Hi, Al
    Try this connection string instead.

    Data Source=.\SQLExpress;AttachDbFilename=c:\mydbfile.mdf;Database=dbname; Trusted_Connection=Yes;

  27. SL

    Thanks for your help Linglom, I have worked with a number of people and searched on this problem with no avail. Your site popped up my last search, and showed me everything I needed to log on to the SQL Server. Outstanding Job!!!!

  28. Hy Chanhan

    I just found the solution, thanks for your useful information. Now i am playing around the ASP.NET and SQL server.

    Regards,

  29. Vishnu

    Hi,
    I am having different problem.
    I can connect to my local sqlserver from one machines but not from other mahcine.
    I did the setup for configuring server for remote access including allowing remote connection, having the sqlbrowser service setup and creating firewall exceptions for the sqlsrvr and sqlbrowser executables.
    I am clueless why it is not able to connect from other machine.

    Can someone help me.

    Vishnu

  30. Rufus

    Hi…
    I doing the instruction,but it still not working…

    “Microsoft SQL Server, Error:233″

    i already check and repeat that instruction, but the error message still same…

    can someone know my problem ?

  31. rctaubert

    This is causing me to pull my hair out.

    I have SQL Server 2005 Express intalled on two different WHS servers.

    I have two clients I am trying to access them from: a desktop and a laptop, both with Vista Ultimate.

    From the desktop I have no problem access them both through the SQL Server 2005 Management Studio Express.

    From the laptop I CANNOT access either of them through the SQL Server 2005 Management Studio Express. I keep getting the dreaded error 26.

    I cannot find anything that would block access. HELP!!!!!

  32. linglom

    Hi, Rufus
    Can you show detail of the error message?


    Hi, Rctaubert
    If you can access the servers from desktop, this means that the remote configuration is work fine. So the problem should be on the network between laptop and the servers or the laptop itself. Check these issues:
    – Make sure the server name is typed correctly.
    – Is the laptop on the same network as the desktop? Is there any additional firewall blocking the traffic?
    – Is the firewall on laptop is blocking the connection? You can try to disable it and test.

  33. rctaubert

    Thank you for your response.

    In both cases I am using SQLServer 2005 Server Management Studio Express to connect. In either instance the Management studio is able to detect both servers and SQLExpress instances.

    I had already compared the Firewall settings between the laptop and desktop. I have a few more apps installed on the laptop so there are a few more exceptions, but other than that they are pretty much the same.

    All my computers are on my local network and all nics are set up the same.

    Already tried disabling the firewall on both WHS and the laptop. No joy!

    I had pretty much poured over all the forums I could find and tried all the usual suggestions.

    This is what is so frustrating. There does not appear to be a logical reason for this to happen. In fact, before I set up the second server I was able to access SQLExpress from my laptop.

  34. aruna

    Hi Sir

    I have sql server 2005 installed in my PC. Now i want to connect this sql server 2005 instance via client tool to other pc and my head office located in other region. How to connect?

  35. linglom

    Hi, rctaubert
    Your problem is quite weird. You told that before setting the second server you can access SQL Server from the laptop. Then, why don’t you try to connect the laptop and the SQL Server directly (direct connection) to see if it is still connect-able?


    Hi, Aruna
    To install only client tool, run setup for SQL Server and when it is on feature select page, you choose to install only Client Components -> Management Tools.

    For second question, if you want to connect the SQL Server from remote PC through the Internet, the server must have static IP. Or you can use the dynamic DNS service from http://www.no-ip.com/.

  36. Thuan

    Thank you so much.

    I have the same problem and have been trying for a long time, but haven’t found the solution yet.

    Your work do help me a lot.

    (Sorry for my bad English)

  37. ABHI

    I am not able to connect to the server in same network, can any one please help me as soon as possible. i tried the above process

  38. linglom

    Hi, ABHI
    Try to test connection from client to the SQL Server by using telnet command:

    telnet your-sql-server-ip 1433

    If you can connect, it will show a blank screen. Otherwise, the connection may be blocked by some firewall or router.

  39. Amar

    Hi,

    I received same error which is in the second screenshot i tried to all modification which you have mention but the status of Tcp\IP port is not getting change in configuation manger and also i tried enable in surface area confiration also here also status is changing.

  40. linglom

    Hi, Amar

    What do you mean “the status of Tcp\IP port is not getting change”? Can’t you enable TCP/IP?

    Is there any error message?

  41. vrushali

    for allowing remote connections …i go through steps……my problem is [“restart database Engine”]
    how do i finish it…….

  42. Nelson Liao

    Nice topic, it really work for me! after finished all settings just restart computer and try to connect again (don’t forget to turn off firewall).

  43. Prabhakar

    I am using local machine for sqlserver 2005 express. i have tried for connection but unable to do. Getting error “provider: SQL Network Interfaces, error: 25 – Connection string is not valid”. I am using connection string as
    “Data Source=MYCOMP/SQLExpress, Integrated Security=True, database=Mydata”. Please help me…

  44. mike

    Hi

    I’m having the same problem as some other people on this site. I’m having a sql2005 express installation on one computer. I can access it remotly through management tool and through telnet. But when I try to connect an application to the database the error verify that you have remote connection enable is showing. And in the eventviewer logs for database does not exists shows. Why? it’s obviously there. By the way, the application is Backup Exec 2010.

    Mike

  45. ToeToeAung

    hi,
    I want to connect sql server via remote desktop connection.It is on the other server. Just now I don’t get connect with this server. I get a connection between my
    computer and host computer. But I can not access sql server 2008. How should I do?
    Thanks,
    ToeToeAung

  46. Asif Kannattil

    Hi Linglom,
    I’m using sql2005. I’m facing the problem with remote server connection. I have changed the Server authentication to “SQL Server and Windows Authentication mode”. But in the case of Surface Area Configuration, I could not change Remote connections to “Using both TCP/IP and named pipes”. Please help me…
    The error message showing :
    Alter failed. (Microsoft.SqlServer.Smo)
    ADDITIONAL INFORMATION:
    SetEnable failed for ServerProtocol ‘Tcp’. (Microsoft.SqlServer.Smo)
    Access denied (System.Management)

  47. linglom

    Hi, Mike
    If you can access SQL Server on remote PC, you should be able to use it with any application remotely. Check that you have type the server instance correctly when connecting. Or try to ask this question in Symantec forum.


    Hi, ToeToeAung
    I don’t quite understand your question. If you remote desktop to the server, you will be as local on that server.


    Hi, Asif Kannattil
    Did you have administrator permission on the server? It could be permission issue.

  48. George Iyke

    I wrote an application in vb2008 which makes use of a database I created in sql server 2005.Each time I try to connect to the database using my application, it gives me the message “An error has occurred while establishing a connection to the server. When connecting to SQL Server 2005, this failure may be caused by the fact that under the default settings SQL Server does not allow remote connection……”. This happens even though I have applied the necessary settings as described in this posting.

  49. Hein

    Hi Linglom
    I have a SQL 2005 Express server where I can connect to the database with the ODBC tools in windows but when i try to connect using the Server Manager it says remote connections is disabled. When I open the SAC Remote access is enabled for SQL and Windows on TCP and Named connections. I checked that the name is correct and no firewall is enabled on the server. Any ideas.

  50. PAYAS

    HELLO, im having a problem with SQL Server 2005 surface area configuration. when i click on surface area configurations for services and connections, follwing error is shown-

    ===================================

    No SQL Server 2005 components were found on the specified computer. Either no components are installed, or you are not an administrator on this computer. (SQLSAC)

    ——————————
    Program Location:

    at Microsoft.SqlSac.MainPanel.FormServicesAndProtocols.ProcessClassConstructor()

    pls help. im logged in as administrator.

  51. jide

    HELLO SIR
    I HAVE TRIAL THIS EXAMPLE AND DID NOT WORK ME PLEASE I NEED YOUR HELP. THIS IS HE PROBLEM I AM FACING

    A network-related or instance-specific error occurred while establishing a connection to SQL Server. The server was not found or was not accessible. Verify that the instance name is correct and that SQL Server is configured to allow remote connections. (provider: Named Pipes Provider, error: 40 – Could not open a connection to SQL Server) (.Net SqlClient Data Provider)

    PLEASE I NEED A SOLUTION. I WILL BE GRATEFUL. THANKS

  52. Shobharani

    Hello sir,
    I complete network related project sir. Frond: ASP.net,C#. Back end: SQL server 2000. But my college system installed sql server 2005. So my project is could not run that platform, some error message was occured (Error:Could not open a connection to SQL Server)pls sent me SQL Server 2005 database coding sir. pls solve this problem sir. Thanking You

  53. tarunesh

    I m not able to enter into database engine, not even in windows authentication mode. it showing msg as req. remote connection. i tried through surface connection area. it enabled remote connection in in pipe and tcp/ip mode. but when i tried for activating services it didnt worked. when pressing start it reflects “you need administrator privelage to strt/stop.

  54. linglom

    Hi, Jide
    This could be firewall problem, try to disable Windows Firewall on the SQL Server computer. But for production, you should add exception rule on firewall for TCP port 1433 which is default port use by SQL Server instead of disable firewall.

    Hi, Shobharani
    See this tutorial, there are 2 parts. – Accessing SQL Server on ASP.NET Web Application using SqlDataSource Web Control, Part 1: SELECT Data. Or this tutorial – Accessing SQL Server on ASP.NET Web Application using ADO.NET.

    Hi, Tarunesh
    As the message tells, you need administrator privilege on the computer. Try to log on as Administrator and configure again.

  55. ali

    I am from iran.
    i have an application with C#.net and i want to connect to a sql server express 2005 instance in a loacal area network such as a bank lan i wish i were usefull.
    i will see your site again.
    thanks alot

  56. trueman

    Dear,
    I have same problem i.e. unable to connect server (using win authentication) but as you suggested also can’t work b’coz it doesn’t have option for configuration (i.e. configuration tool) . Is this pb of setup file (43.2 MB) …?

  57. Nancee Petruccelli

    Video is still private? Too bad, I can’t figure it out myself and this would be very useful.

  58. Novella Wyrostek

    Hey there , I am forming a new website almost the same as ehow and your articles would fit the context good. Would I be able to copy and paste your website?

  59. bryan

    I have already done the procedures but whenever i connect to my Sql database, the same error occurs. I hope you can give me a solution because i really need to finish some project. thank you

  60. Raaj

    what is the connection string to use in web config file & the sqlconnection cmd in aspx page

  61. stpaulchuck

    I had to enable Named Pipes on the Express instance to get it to work. I am talking to it via a WiFi router and the TCP/IP connection type did not work. [back in the day before WiFi, TCP/IP was the only way to talk to the remote]. On this side of the router TCP/IP works as preferred connection. Perhaps it’s the port number or something. Anyway, I just thought I’d add that tidbit to the conversation as so many of us have notebooks attached via WiFi routers.

  62. Michael

    I have followed all the instructions on this and another blog to open remote access and I still can’t log into my database at work from home. I really need some help. I am not an IT kind of guy but I can follow directions very well. Please help.

Comments are now closed for this article. If you still have issue and would like to discuss, you can send me a message.
