SQL Server 2005 Training, Day 1, Part 2

SQL Server 2005 Training, Day 1, Part 2

This part contents mostly concerns coding on VB.NET which will interacts with SQL server on pubs database. The sample database can be download at SQL2000SampleDb. You do not need to complete Part I before.

Topics

  1. Define a connection string
  2. Query table sales by year
  3. Call a store procedure
  4. Get return value from store procedure
  5. Get return values from store procedure
  6. Using max, min, and average

Let’s start

  1. Define a connection string module

    Create new VB.NET Windows Application project and add new module to the project for add a connection string to SQL server. You need to alter this string to match your environment and keep database pointing to pubs.

    Module Module1
        Public Sqlcon As String = "Server=BKKSQL2005;uid=sa;password=123456;database=pubs"
    End Module

    A connection string

  2. Back to top

  3. Query table sales by year

    Design form1.vb

    • Back to form1.vb.
    • Add new Textbox as TextBox1, TextBox2, TextBox3, TextBox4 and TextBox5 to the form.
    • Add new Button as Button1 and Button2 to the form.
    • Add DataGridView to the form.
    • Form1's Design

    Coding form1.vb

    • Add code below on this form.
    • Imports System.Data.SqlClient
    • Double click Button1 and put below code into it.
    •         Dim strsql As String = "select title_id "
              For i As Integer = CInt(TextBox1.Text) To CInt(TextBox2.Text)
                  strsql &= ", sum(case year(ord_date) when " & i & " then qty else 0 end) as Y" & i
              Next
              strsql &= " from sales group by title_id with rollup"

              Dim DA As New SqlDataAdapter(strsql, Module1.Sqlcon)
              Dim DT As New DataTable
              DA.Fill(DT)

              Dim str1 As String = ""
              For j As Integer = 1 To DT.Columns.Count - 1
                  Dim dc As DataColumn = DT.Columns(j)
                  If str1 <> "" Then str1 = str1 & "+"
                  str1 = str1 & dc.ColumnName
              Next

              DT.Columns.Add("Sum1", GetType(Integer), str1)

              Dim dr As DataRow = DT.Rows(DT.Rows.Count - 1)
              dr(0) = "Total"
              DataGridView1.DataSource = DT
    • Try compile and run the project, enter ‘1992’ on TextBox1 as start year and ‘1994’ on TextBox2 as end year and click the ‘View by Year’ button. You’ll see the result as below.

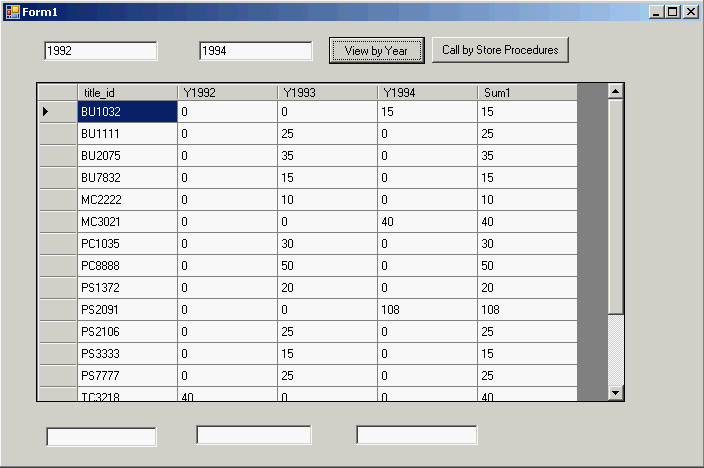

    • SQL result on DataGridView1

    • You can download source code at here – TrainingSQL1.zip
  4. Back to top

  5. Call a store procedure

    This example will modify code from previous example and you need a store procedure ‘test_a’ which can be found in Part I or download sql to create a procedure at here – test_a.sql

    There are 3 different coding styles that will give the same result for calling store procedure. The example will try to call a store procedure ‘test_a’ which receive two inputs (start year and end year).

    From previous Form1, modify Button1_Click event to be one of these code.

    1. Sending parameters along with execute string.
              Dim strsql As String = "exec test_a '" & TextBox1.Text & "', '" & TextBox2.Text & "'"
              Dim DA As New SqlDataAdapter(strsql, Module1.Sqlcon)
              Dim DT As New DataTable
              DA.Fill(DT)
              DataGridView1.DataSource = DT
    2. Sending parameters by adding as SqlParameters.
              Dim cn As New SqlConnection(Module1.Sqlcon)
              Dim cmd As New SqlCommand("test_a", cn)
              cmd.CommandType = CommandType.StoredProcedure
              Dim P1 As SqlParameter = cmd.Parameters.Add("@Year1", SqlDbType.NVarChar)
              P1.Value = TextBox1.Text
              P1 = cmd.Parameters.Add("@Year2", SqlDbType.NVarChar)
              P1.Value = TextBox2.Text

              Dim DA As New SqlDataAdapter(cmd)
              Dim dt As New DataTable
              DA.Fill(dt)
              DataGridView1.DataSource = dt
    3. Using OleDB
      Imports System.Data.OleDb
      .
      .
              Dim cn As New OleDbConnection("Provider=SQLOLEDB;" & Module1.Sqlcon)
              Dim cmd As New OleDbCommand("{call test_a (?,?)}", cn)
              Dim P1 As OleDbParameter = cmd.Parameters.Add("@Year1", OleDbType.VarWChar)
              P1.Value = TextBox1.Text
              P1 = cmd.Parameters.Add("@Year2", OleDbType.VarWChar)
              P1.Value = TextBox2.Text
              Dim DA As New OleDbDataAdapter(cmd)
              Dim dt As New DataTable
              DA.Fill(dt)
              DataGridView1.DataSource = dt

    The result will look like previous example. You can download the modified source code at here – TrainingSQL2.zip.
    Execute 'test_ ' store procedure and result on DataGridView1

  6. Back to top

  7. Get return value from store procedure

    There are 3 different coding styles as like in previous example. Modify source in Form1.Button1_Click method with the following code again.

    1. Sending parameters along with execute string
              Dim strsql As String = "declare @i int exec @i = test_a '" & TextBox1.Text & "', '" & TextBox2.Text & "' select @i as num1"
              Dim DA As New SqlDataAdapter(strsql, Module1.Sqlcon)
              Dim DS As New DataSet
              DA.Fill(DS)
              DataGridView1.DataSource = DS.Tables(0)
              Dim i As Integer = DS.Tables(1).Rows(0)("num1")
              MsgBox(i)
    2. Sending parameters by using SqlParameter
              Dim cn As New SqlConnection(Module1.Sqlcon)
              Dim cmd As New SqlCommand("test_a", cn)
              cmd.CommandType = CommandType.StoredProcedure
              Dim P2 As SqlParameter = cmd.Parameters.Add("@Return", SqlDbType.Int)
              P2.Direction = ParameterDirection.ReturnValue
              Dim P1 As SqlParameter = cmd.Parameters.Add("@Year1", SqlDbType.NVarChar)
              P1.Value = TextBox1.Text
              P1 = cmd.Parameters.Add("@Year2", SqlDbType.NVarChar)
              P1.Value = TextBox2.Text
              Dim DA As New SqlDataAdapter(cmd)
              Dim dt As New DataTable
              DA.Fill(dt)
              DataGridView1.DataSource = dt
              MsgBox(P2.Value)
    3. Using OleDB
              Dim cn As New OleDbConnection("Provider=SQLOLEDB;" & Module1.Sqlcon)
              Dim cmd As New OleDbCommand("{? = call test_a (?,?)}", cn)
              Dim P2 As OleDbParameter = cmd.Parameters.Add("@Return", OleDbType.Integer)
              P2.Direction = ParameterDirection.ReturnValue
              Dim P1 As OleDbParameter = cmd.Parameters.Add("@Year1", OleDbType.VarWChar)
              P1.Value = TextBox1.Text
              P1 = cmd.Parameters.Add("@Year2", OleDbType.VarWChar)
              P1.Value = TextBox2.Text
              Dim DA As New OleDbDataAdapter(cmd)
              Dim dt As New DataTable
              DA.Fill(dt)
              DataGridView1.DataSource = dt
              MsgBox(P2.Value)

    The result will look like previous example but add a pop-up message box the return value from the store procedure. You can download the source code at here – TrainingSQL3.zip.
    Execute 'test_a' store procedure and result on DataGridView1 with return value

  8. Back to top

  9. Get return values from store procedure

    This example, you need a store procedure ‘test_a2’ which can be found here – test_a2.sql. This store procedure receives two inputs as the store procedure ‘test_a’ but it returns more additional values which are @sum1, @avg1 and a return value.
    There are 3 different coding styles as like in previous example. Modify source in Form1.Button1_Click method with the following code again. The additional values that are returned from the store procedure will be place into TextBox3, TextBox4 and TextBox5.

    1. Sending parameters along with execute string
              Dim strsql As String = "declare @i int,@j int, @k int exec @i = test_a2 '" & TextBox1.Text & "', '" & TextBox2.Text & "',@j out, @k out select @i as num1,@j,@k"
              Dim DA As New SqlDataAdapter(strsql, Module1.Sqlcon)
              Dim DS As New DataSet
              DA.Fill(DS)
              DataGridView1.DataSource = DS.Tables(0)
              Dim dr As DataRow = DS.Tables(1).Rows(0)
              TextBox3.Text = dr(0)
              TextBox4.Text = dr(1)
              TextBox5.Text = dr(2)
    2. Sending parameters by using SqlParameter
      Note: The parameter’s name must match as in the store procedure.

              Dim cn As New SqlConnection(Module1.Sqlcon)
              Dim cmd As New SqlCommand("test_a2", cn)
              cmd.CommandType = CommandType.StoredProcedure
              Dim P2 As SqlParameter = cmd.Parameters.Add("@Return", SqlDbType.Int)
              P2.Direction = ParameterDirection.ReturnValue
              Dim P1 As SqlParameter = cmd.Parameters.Add("@Year1", SqlDbType.NVarChar)
              P1.Value = TextBox1.Text
              P1 = cmd.Parameters.Add("@Year2", SqlDbType.NVarChar)
              P1.Value = TextBox2.Text
              Dim P3 As SqlParameter = cmd.Parameters.Add("@sum1", SqlDbType.Int)
              P3.Direction = ParameterDirection.Output
              Dim P4 As SqlParameter = cmd.Parameters.Add("@avg1", SqlDbType.Int)
              P4.Direction = ParameterDirection.Output
              Dim DA As New SqlDataAdapter(cmd)
              Dim dt As New DataTable
              DA.Fill(dt)
              DataGridView1.DataSource = dt
              TextBox3.Text = P2.Value
              TextBox4.Text = P3.Value
              TextBox5.Text = P4.Value
    3. Using OleDB
              Dim cn As New OleDbConnection("Provider=SQLOLEDB;" & Module1.Sqlcon)
              Dim cmd As New OleDbCommand("{? = call test_a2 (?,?,?,?)}", cn)
              Dim P2 As OleDbParameter = cmd.Parameters.Add("@Return", OleDbType.Integer)
              P2.Direction = ParameterDirection.ReturnValue
              Dim P1 As OleDbParameter = cmd.Parameters.Add("@Year1", OleDbType.VarWChar)
              P1.Value = TextBox1.Text
              P1 = cmd.Parameters.Add("@Year2", OleDbType.VarWChar)
              P1.Value = TextBox2.Text
              Dim P3 As OleDbParameter = cmd.Parameters.Add("@sum1", OleDbType.Integer)
              P3.Direction = ParameterDirection.Output
              Dim P4 As OleDbParameter = cmd.Parameters.Add("@avg1", OleDbType.Integer)
              P4.Direction = ParameterDirection.Output
              Dim DA As New OleDbDataAdapter(cmd)
              Dim dt As New DataTable
              DA.Fill(dt)
              DataGridView1.DataSource = dt
              TextBox3.Text = P2.Value
              TextBox4.Text = P3.Value
              TextBox5.Text = P4.Value

    The result will look like previous example but add a pop-up message box the return value from the store procedure. You can download the source code at here – TrainingSQL4.zip.
    Execute 'test_a2' store procedure with multiple return values

  10. Back to top

  11. Using max, min, and average

    This example shows how to using function max, min and average by compute from qty field on sales table.

    Design form2.vb

    • Add new form on the project.
    • Add new ListBox1 to the form.
    • Add DataGridView1, DataGridView2 and DataGridView3 to the form.
    • Form2's design

    Coding form2.vb
    Add below code to the form.

    Imports System.Data.SqlClient

    Public Class Form2
        Dim ds As New DataSet
        Private Sub Form2_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
            Dim strsql As String = "select stor_id,ord_num, qty from sales order by stor_id " & _
                                " compute max(qty),min(qty), avg(qty) by stor_id"
            Dim da As New SqlDataAdapter(strsql, Module1.Sqlcon)

            da.Fill(ds)
            'MsgBox(ds.Tables.Count)
            For Each dt As DataTable In ds.Tables
                ListBox1.Items.Add(dt.TableName)
            Next
            Dim dt3 As DataTable = ds.Tables(0).Clone
            Dim dt4 As DataTable = ds.Tables(1).Clone
            dt4.Columns.Add("Stor_id", GetType(Integer))
            For i As Integer = 0 To ds.Tables.Count - 1 Step 2
                Dim dt As DataTable = ds.Tables(i)
                Dim Stor_ID As Integer = dt.Rows(0)("stor_id")
                For Each dr As DataRow In dt.Rows
                    'dt3.ImportRow(dr)
                    Dim dr2 As DataRow = dt3.NewRow
                    dr2.ItemArray = dr.ItemArray
                    dt3.Rows.Add(dr2)
                Next

                Dim dr5 As DataRow = ds.Tables(i + 1).Rows(0)
                dt4.ImportRow(dr5)
                Dim dr4 As DataRow = dt4.Rows(dt4.Rows.Count - 1)
                dr4("stor_id") = Stor_ID

            Next
            DataGridView2.DataSource = dt3
            DataGridView3.DataSource = dt4


        End Sub

        Private Sub ListBox1_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ListBox1.SelectedIndexChanged
            Dim DT As DataTable
            DT = ds.Tables(ListBox1.Text)
            DataGridView1.DataSource = DT
        End Sub
    End Class

    Change startup form on the project by right-click on the project’s name and select properties and change startup form from ‘Form1’ to ‘Form2’. Compile and run the project.
    Change startup form

    You’ll see that on DataGridView1 will be changed when you change value on ListBox1. On DataGridView2 shows result from sql query command and DataGridView3 shows computed values (max, min and average) of each stor_id. You can download the source code at here – TrainingSQL5.zip.
    Result of compute functions

    Back to top
